Compact Long-Life CM-Series Electrolytic Capacitor for Sewing

Designed specifically for sewing equipment AC servo systems, our CM-series capacitors feature significantly smaller case sizes than standard SC-series alternatives while maintaining a uniform 5.5mm height. These surface-mount components offer 2000 hours of reliable operation at 85°C and are optimized for high-density PCB assembly, supporting automated production lines with carrier tape packaging

Quantity:
Availability:





Inquire Add to Basket

Product Description

Overview of CM-Series Electrolytic Capacitors

The CM-Series compact long-life electrolytic capacitor is specifically engineered for industrial sewing machine applications. It features smaller case sizes compared to the SC series and a low profile of 5.5mm, making it ideal for space-constrained electronic assemblies. This surface mount device supports high-density PCB layouts and is compatible with automatic insertion machines using carrier tape, which helps streamline commercial production processes for enterprise customers.

Key Features of CM-Series Electrolytic Capacitors

Compact Low-Profile Design

The CM-Series offers reduced physical dimensions compared to the SC series, with a maximum height of 5.5mm. This compact form factor allows for more efficient use of PCB space, which is critical for modern miniaturized electronic devices in industrial applications. Three case diameter options (4mm, 5mm and 6.3mm) are available to accommodate different capacitance and voltage requirements.

High-Density PCB and Automation Compatibility

Designed for surface mounting, these capacitors are optimized for high-density PC board layouts. They are supplied on carrier tape, enabling seamless integration with automatic insertion equipment. This compatibility reduces manual labor requirements and improves production efficiency for commercial users engaged in large-scale manufacturing.

Long-Term Reliability

The capacitors undergo rigorous reliability testing to ensure consistent performance in industrial environments. They are rated for a load life of 2000 hours at 85℃ under rated voltage application, maintaining stable electrical characteristics throughout their service life. They also exhibit good resistance to soldering heat and low-temperature performance.

Complete Technical Specifications

Item	Characteristics
Operating temperature range	-40-+85℃
Leakage currentmax.	I=0.01CV or 3 μ A whichever is gareater(after 2 minutes)
Capacitance tolerance	±20% at 120Hz,20℃
Dissipation factor max. (At 120Hz,20℃)	WV	4	6.3		10		16		25		35
	tan 8	0.4	0.35		0.24		0.2		0.15		0.15
Low temperature characteristics Impedance ratio at 120Hz)	WV 4 6.3 10 16 25 35
	Z-25℃/Z+20℃ 6 Z-40℃/Z+20℃ 12			4		3		2		2
				8		6		4		4
Load life (after application of the rated voltage for 2000 hours at 85℃	Leakage current Less than specified value Capacitance change Within ±25% of initial value tan 5 Less than 200% of specified va										lue e same as load life value. tored to 20℃
Shelf life(at 85℃)	Alter 1000 hours no load test, leakage current, capacitance and tan δ ar The following specifications shallbe satisfied when the capacitors are res after exposing them at 250℃ for 30 seconds. Leakage current Less than specified value Capacitance change Within ±10% of initial value tan 5 Less than specified value
Resistance to soldering heat

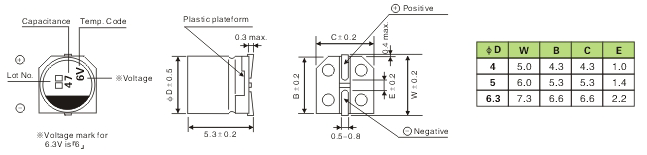

• DIMENSIONS & MAXIMUM PERMISSIBLE DIFFERENCES

Compact Long-Life CM-Series Electrolytic Capacitor for Sewing

• DIMENSIONS & MAXIMUM PERMISSIBLE RIPPLE CURRENT

μF / WV	4		6.3		10		16		25		35		50
0.1													4	4
0.22													4	5
0.33													4	6
0.47													4	8
1													4	11
2.2													4	17
3.3													4	20
4.7											4	18	4	24
10							4	21	4	24	4	27	5	41
22			4	24	4	28	4	30	4	41	6.3	53	6.3	71
33	4	27	4	30	4	34	5	43	5	50	6.3	65
47	4	32	4	36	5	47	5	52	6.3	70
68	4	44	5	50	6.3	66	6.3	78
100	5	54	5	60	6.3	80	6.3	88	Ripple current(mA rms) at 85℃, 120Hz Case size ΦD(mm)
220	6.3	93							Ripple current(mA rms) at 85℃, 120Hz Case size ΦD(mm)

Target Industrial Applications

The CM-Series electrolytic capacitors are primarily designed for AC servo systems in industrial sewing machines. They are also suitable for use in other industrial electronic devices that require compact size and long-term reliability, including stepping servo controllers, switching power supplies and frequency converters. The product has been adopted by leading enterprises in the industrial sewing equipment sector, such as Baumax, Supu, Hengqiang and Wolong.

Core Technologies

The company possesses 2 patented technologies and 8 copyrights for production control software. The products with a working voltage of 600V that are mass-produced are domestically leading.

Product Standards

The products meet the EU standards and have passed the CE and CB testing certifications.

History of Development

In 2001, the enterprise was established in Beijing.
In 2007, the Suzhou branch was established, and in the same year, the production plant was relocated to Suzhou.
In 2011, the construction of the Anhui factory was initiated.
By the end of 2012, the Anhui factory was officially put into production.
In May 2013, the core production equipment was updated, with a cumulative investment of RMB 15 million in the equipment.

Cooperative Customers

For stepping servo controllers: Shenzhen Leadshine, Beijing HollySys, Start and others.
For AC servo systems of sewing equipment: Baumax, Supu, Hengqiang, Wolong.
In the field of health equipment controllers, UUcap capacitors account for more than 70% of the market share. The company is the designated supplier for brands such as Icon (USA), Shuhua, and Oma.
Customers in industries such as industrial UPS, switching power supplies, and frequency converters.
A.O. Smith, Technology Development Company of Tsinghua University.

Quality Assurance and Compliance

All CM-Series capacitors comply with EU standards and have passed CE and CB testing certifications. The manufacturing process utilizes high-precision automatic equipment and is supported by 2 patented technologies and 8 production control software copyrights. This ensures consistent product quality and performance across large-scale commercial procurement orders.

FAQ

What is the operating temperature range of CM-Series capacitors?

The capacitors can operate within a temperature range of -40℃ to +85℃, making them suitable for various industrial environments.

What is the capacitance tolerance of these capacitors?

The capacitance tolerance is ±20% when measured at 120Hz and 20℃.

Are these capacitors compatible with automatic insertion machines?

Yes, they are supplied on carrier tape and are fully compatible with automatic insertion equipment, which supports high-volume production processes.

What certifications do CM-Series capacitors have?

The products meet EU standards and have obtained CE and CB certifications.

For detailed datasheets, sample requests or customized quotations for commercial procurement, please contact our technical support team. We provide responsive service and flexible supply solutions to meet the needs of industrial clients worldwide.
