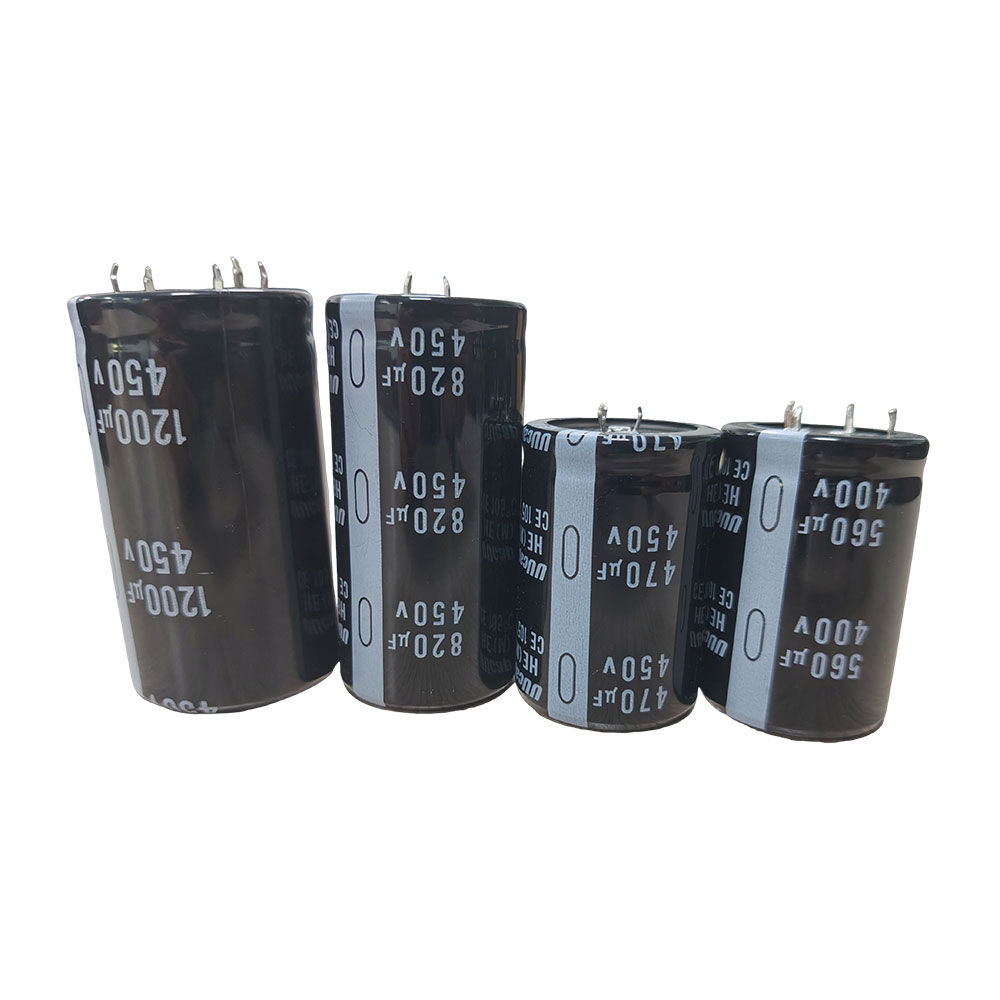

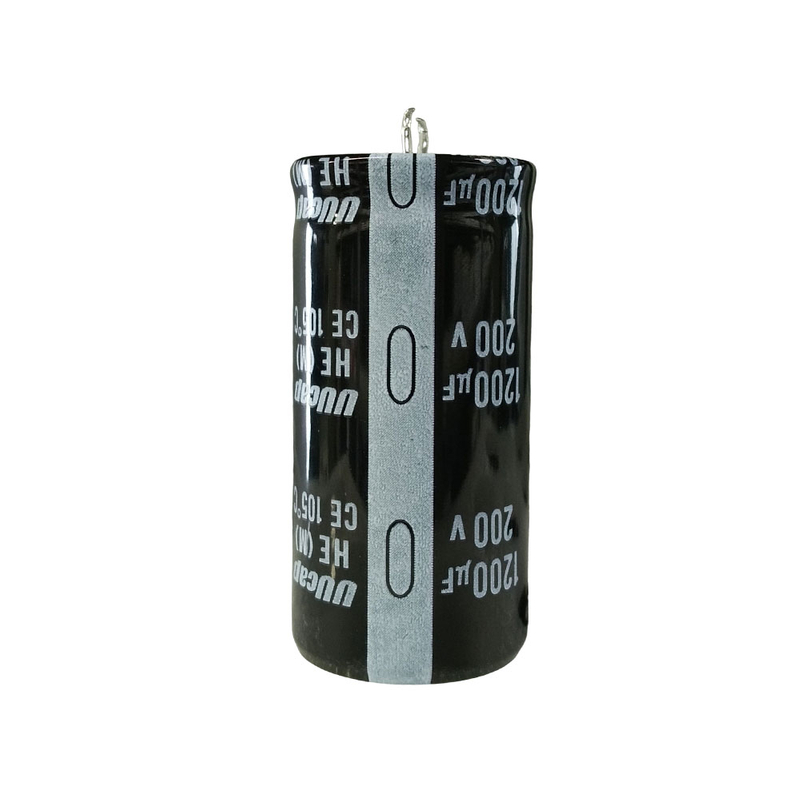

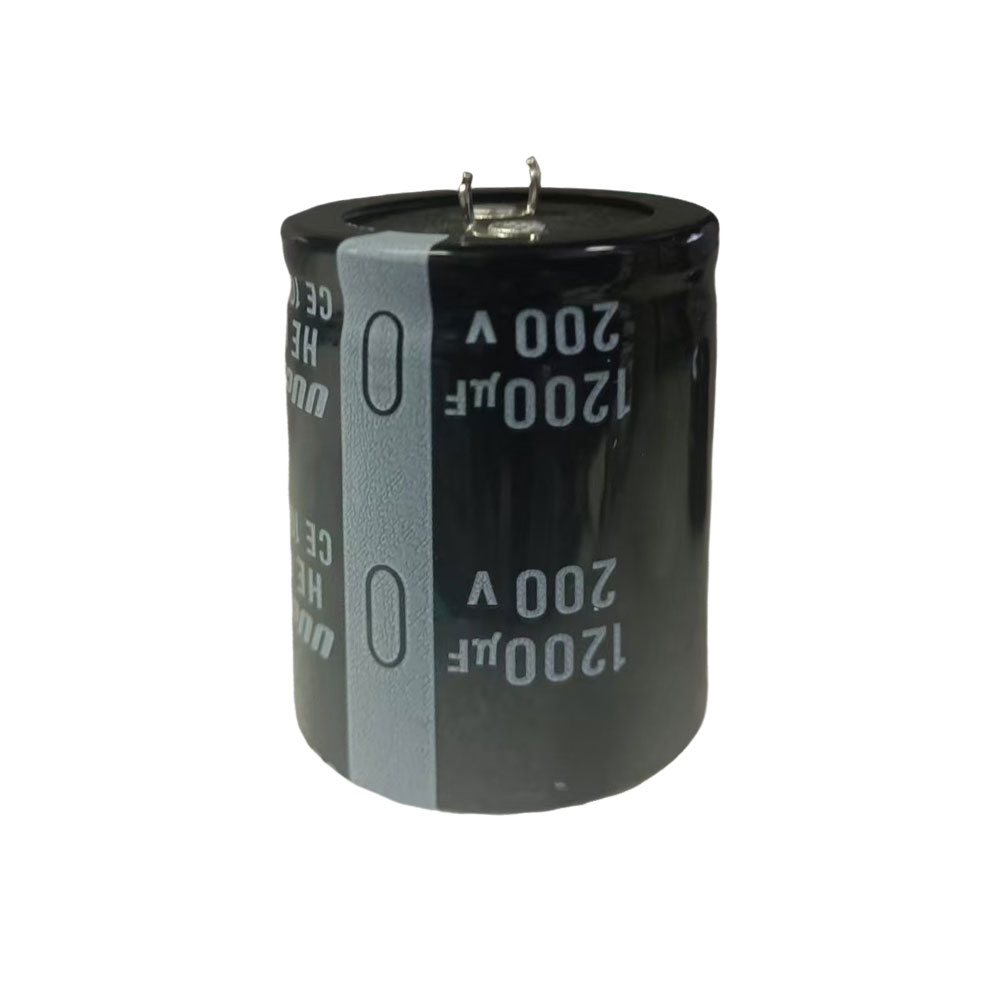

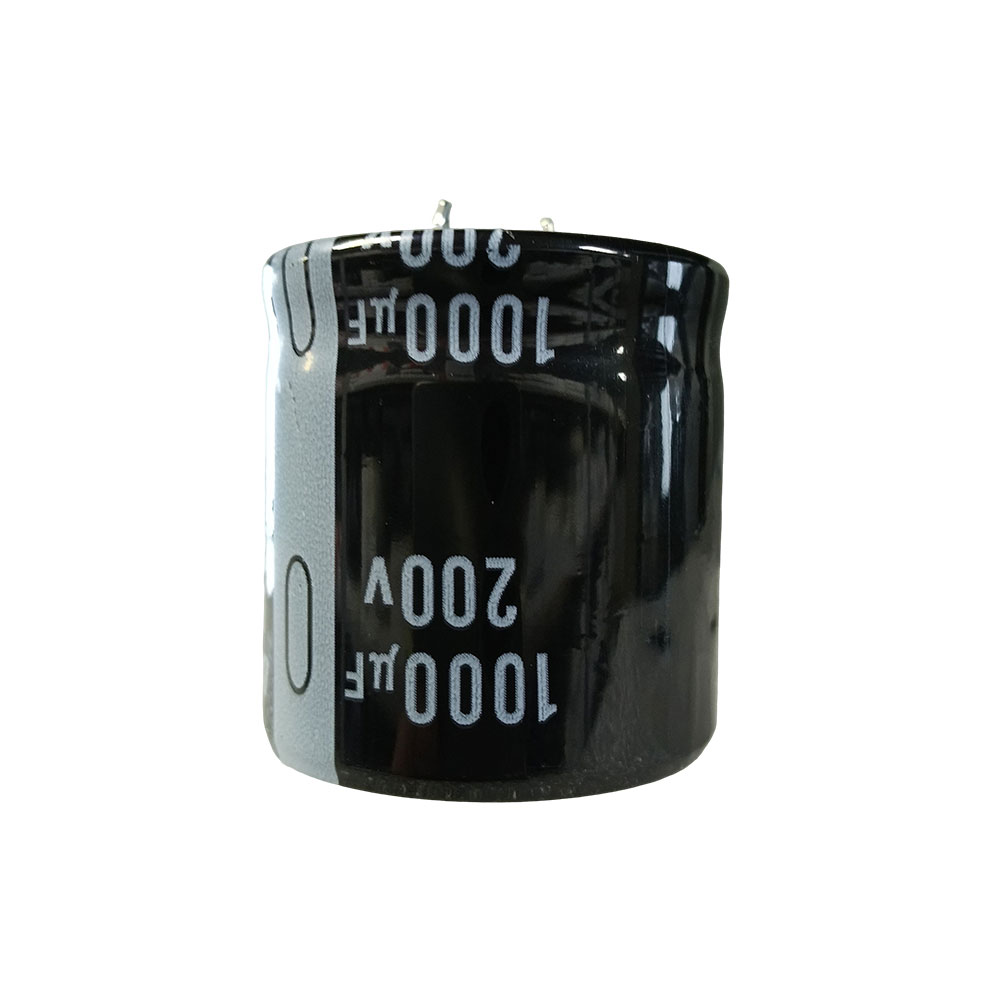

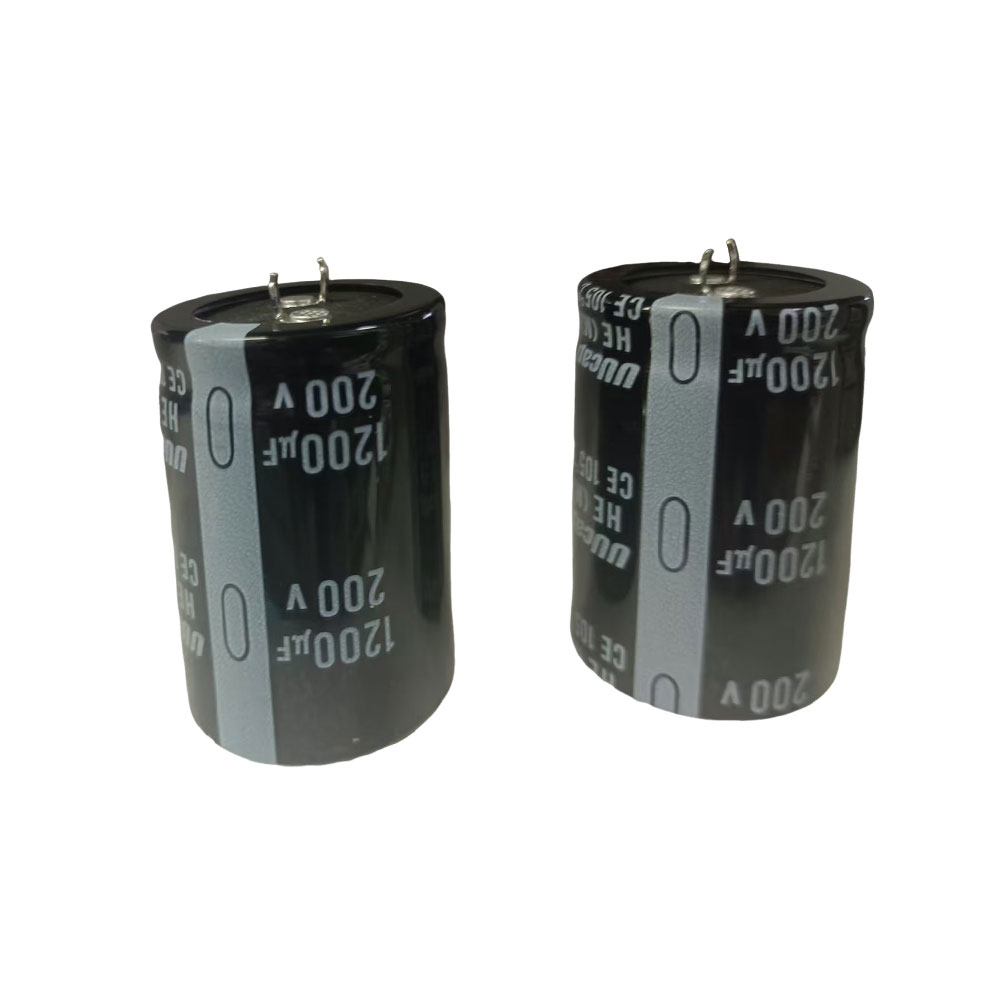

High-Ripple Electrolytic Capacitors for Switching Power Supplies

Our high-ripple electrolytic capacitors are professionally engineered for switching power supplies, offering 3000 hours of reliable performance at 105°C with RoHS compliance. Featuring snap-in terminals and a broad voltage range of 50V to 700V, they handle extreme ripple currents efficiently and maintain stable electrical characteristics over their extended lifespan, ensuring uninterrupted operation in industrial power systems.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Overview of High-Ripple Electrolytic Capacitors

Our high-ripple electrolytic capacitors are engineered specifically for switching power supply applications, delivering consistent performance in demanding industrial environments. With a standard 3000-hour high ripple current rating and 105°C operating temperature capability, these snap-in capacitors provide the stability required for continuous commercial operations. Available in voltage ratings from 50V to 700V and capacitance values from 47μF to 47000μF, our product line accommodates a wide range of switching power supply designs.

Key Features of High-Ripple Electrolytic Capacitors

Temperature and Durability Performance

These capacitors operate within a temperature range of -40°C to +105°C for voltage ratings from 16V to 250V, and -25°C to +105°C for voltage ratings from 315V to 450V. Under rated voltage and standard ripple current conditions at 105°C, the capacitors maintain performance for 3000 hours. After this endurance test, capacitance change remains within ±20% of the initial value, dissipation factor (tan δ) does not exceed 150% of the initial standard, and leakage current stays within initial specifications.

Electrical Characteristics

The capacitors feature a rated capacitance tolerance of ±20% at 120Hz and 20°C. Leakage current is limited to the smaller value of 3/CV (μA) or 5mA when measured at 20°C after 5 minutes of voltage application. Dissipation factor values vary by voltage rating, ranging from 0.45 at 16V to 0.15 at 160-420V, and 0.20 at 450V. Frequency correction factors are provided for accurate performance calculation across different operating frequencies.

Compliance and Safety Standards

All our high-ripple electrolytic capacitors comply with RoHS directives and have passed CE and CB testing certifications, meeting EU safety and environmental requirements. This ensures compatibility with global commercial procurement standards and reduces compliance risks for our customers.

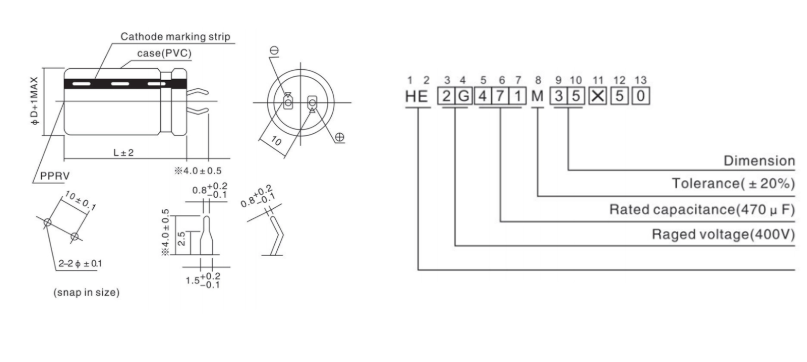

Technical Specifications for Switching Power Supply Capacitors

High-Ripple Electrolytic Capacitors for Switching Power Supplies

100V(2A)
Ratedcapa citance (μ F)	Dimension ΦDxL(mm)	Ripple current (mA)	tan δ	leakage current (mA)
560	22x25	1070	0.20	0.70
820	22x30	1350	0.20	0.85
820	25x25	1350	0.20	0.85
1000	22x30	1540	0.20	0.94
1000	25x30	1560	0.20	0.94
1200	22x40	1740	0.20	1.03
	25x30	1760	0.20	1.03
	30x25	1710	0.20	1.03
1500	22x45	1990	0.20	1.16
	25x35	2030	0.20	1.16
	30x30	2000	0.20	1.16
1800	25x40	2280	0.20	1.27
1800	30x35	2270	0.20	1.27
2200	25x50	2570	0.20	1.40
	30x35	2590	0.20	1.40
	35x30	2520	0.20	1.40
2700	30x45	2940	0.20	1.55
2700	35x35	2900	0.20	1.55
3300	30x50	3320	0.20	1.72
3300	35x40	3310	0.20	1.72
3900	35x45	3690	0.20	1.87
4700	35x50	4140	0.20	2.05

160V(2C)
Ratedcapa citance (μ F)	Dimension ΦDxL(mm)	Ripple current (mA)	tan δ	leakage current (mA)
270	20x25	1100	0.15	0.62
330	20x30	1200	0.15	0.68
390	20x30	1300	0.15	0.74
390	22x25	1300	0.15	0.74
470	20x35	1340	0.15	0.82
	22x30	1550	0.15	0.82
	25x25	1550	0.15	0.82
560	20x40	1500	0.15	0.89
	22x35	1670	0.15	0.89
	25x30	1670	0.15	0.89
	30x25	1670	0.15	0.89
680	20x45	1700	0.15	0.98
	22x40	1820	0.15	0.98
	25x30	1820	0.15	0.98
	30x25	1820	0.15	0.98
820	22x45	2040	0.15	1.08
	25x35	2040	0.15	1.08
	30x30	2040	0.15	1.08
	35x25	2040	0.15	1.08
1000	22x50	2250	0.15	1.20
	25x40	2250	0.15	1.20
	30x30	2250	0.15	1.20
	35x25	2250	0.15	1.20
1200	25x45	2490	0.15	1.31
	30x35	2490	0.15	1.31
	35x30	2490	0.15	1.31
1500	30x40	2840	0.15	1.46
1500	35x30	2840	0.15	1.46
1800	30x45	3320	0.15	1.60
1800	35x35	3000	0.15	1.60
2200	35x45	3500	0.15	1.77
2700	35x50	4000	0.15	1.97

200V(2D)
Ratedcapa citance (μ F)	Dimension ΦDxL(mm)	Ripple current (mA)	tan δ	leakage current (mA)
220	22x25	1000	0.15	0.62
270	20x30	1100	0.15	0.69
270	22x25	1100	0.15	0.69
330	20x35	1200	0.15	0.77
	22x30	1250	0.15	0.77
	25x25	1250	0.15	0.77
390	20x45	1310	0.15	0.83
	22x35	1350	0.15	0.83
	25x30	1350	0.15	0.83
470	20x45	1450	0.15	0.91
	22x40	1500	0.15	0.91
	25x30	1500	0.15	0.91
	30x25	1500	0.15	0.91
560	20x50	1580	0.15	1.00
	22x45	1670	0.15	1.00
	25x35	1670	0.15	1.00
	30x30	1670	0.15	1.00
680	22x45	1780	0.15	1.10
	25x40	1780	0.15	1.10
	30x35	1780	0.15	1.10
	35x30	1780	0.15	1.10
820	25x50	2040	0.15	1.21
	30x40	2040	0.15	1.21
	35x30	2040	0.15	1.21
1000	25x50	2300	0.15	1.34
	30x40	2300	0.15	1.34
	35x35	2300	0.15	1.34
1200	30x40	2650	0.15	1.46
1200	35x35	2650	0.15	1.46
1500	30x50	3080	0.15	1.64
1500	35x45	3080	0.15	1.64
1800	35x50	3680	0.15	1.80
2200	35x50	3780	0.15	1.98

250V (2E)
Ratedcapa citance (μ F)	Dimension ΦDxL(mm)	Ripple current (mA)	tan δ	leakage current (mA)
150	22x25	790	0.15	0.58
180	22x30	900	0.15	0.63
220	22x25	1000	0.15	0.70
220	22x30	1080	0.15	0.70
270	20x35	1100	0.15	0.77
	22x35	1180	0.15	0.77
	25x30	1180	0.15	0.77
330	22x40	1200	0.15	0.86
	25x25	1300	0.15	0.86
	25x30	1300	0.15	0.86
	30x25	1300	0.15	0.86
390	20x50	1450	0.15	0.93
	22x45	1490	0.15	0.93
	25x35	1490	0.15	0.93
	30x30	1490	0.15	0.93
470	25x35	1650	0.15	1.02
	25x40	1650	0.15	1.02
	30x30	1650	0.15	1.02
	35x25	1650	0.15	1.02
560	25x45	1800	0.15	1.12
	30x35	1800	0.15	1.12
	35x30	1800	0.15	1.12
680	25x50	2000	0.15	1.23
	30x40	2000	0.15	1.23
	35x30	2000	0.15	1.23
820	30x45	2300	0.15	1.35
820	35x35	2300	0.15	1.35
1000	30x50	2470	0.15	1.50
1000	35x45	2570	0.15	1.50
1200	35x45/50	2600	0.15	1.64
1500	35x50	3000	0.15	1.83

400V(2G)
Ratedcapa citance (μ F)	Dimension ΦDxL(mm)	Ripple current (mA)	tan δ	leakage current (mA)
56	20x25	510	0.15	0.44
68	20x30	560	0.15	0.49
82	20x30	640	0.15	0.54
82	22x25	640	0.15	0.54
100	20x35	700	0.15	0.60
	22x30	700	0.15	0.60
	25x25	700	0.15	0.60
120	20x40	750	0.15	0.65
	22x35	750	0.15	0.65
	25x25	750	0.15	0.65
150	20x45	830	0.15	0.73
	22x40	880	0.15	0.73
	25x30	880	0.15	0.73
	30x25	880	0.15	0.73
180	22x45	980	0.15	0.80
	25x35	980	0.15	0.80
	30x30	980	0.15	0.80
	35x25	980	0.15	0.80
220	22x50	1100	0.15	0.88
	25x40	1100	0.15	0.88
	30x30	1100	0.15	0.88
	35x25	1100	0.15	0.88
270	25x45	1220	0.15	0.98
	30x35	1220	0.15	0.98
	35x30	1220	0.15	0.98
330	25x50	1440	0.15	1.08
	30x40	1440	0.15	1.08
	35x30	1440	0.15	1.08
390	30x45	1600	0.15	1.18
390	35x35	1600	0.15	1.18
470	30x50	1900	0.15	1.30
470	35x40	1900	0.15	1.30
560	35x45	2120	0.15	1.41

450V(2W)
Ratedcapa citance (μ F)	Dimension ΦDxL(mm)	Ripple current (mA)	tan δ	leakage current (mA)
47	20x25	390	0.20	0.43
56	20x30	510	0.20	0.47
68	20x35	560	0.20	0.52
82	20x35	640	0.20	0.57
	22x30	640	0.20	0.57
	25x25	640	0.20	0.57
100	20x45	690	0.20	0.63
	22x35	690	0.20	0.63
	25x30	690	0.20	0.63
120	20x50	750	0.20	0.69
	22x40	800	0.20	0.69
	25x30	800	0.20	0.69
	30x25	800	0.20	0.69
150	22x45	880	0.20	0.77
	25x35	880	0.20	0.77
	30x30	880	0.20	0.77
180	22x50	1000	0.20	0.85
	25x40	1000	0.20	0.85
	30x30	1000	0.20	0.85
220	25x45	1120	0.20	0.94
	30x35	1120	0.20	0.94
	35x30	1120	0.20	0.94
270	30x40	1280	0.20	1.04
270	35x35	1280	0.20	1.04
330	30x50	1450	0.20	1.15
330	35x40	1450	0.20	1.15
390	35x40	1500	0.20	1.25
470	35x50	1850	0.20	1.37

• Professional for power supplies

• standard 3000h high ripple current

• RoHS compliant

Item	Technical specification
Temperature range	-40~+105℃(16~250V),-25~+105℃(315~450V)
Rated voltage range	50~700V
Rated capacitance range	47~47000μF
Rated tolerance range	±20%(120Hz,20℃)
Leakage current	Not exceeding the smaller value of 3/CV ( μ A) or 5 mA (20℃, 5 minutes)
(tan δ)	Raged voltage(V)		16	25	35	50	63	80·100	160-420	450	120HZ 20℃
	tan 8(MAx.)		0.45	0.40	0.35	0.30	0.25	0.20	0.15	0.20
Temp.specification	Raged voltage(V)		16~100			160~250			315~450		120HZ
	resisitivity (MAX.)	Z-25℃/Z+20℃	4			3			8
		Z-40℃/Z+20℃	16			12			-
Endurance	After applying the specified standard ripple current within the rated voltage range at 105℃ for 3000 hours (2000 hours for products with a rated voltage of 10 ~ 250V and 500V grade), the following requirements shall be met when tested at 20℃ after recovery.
	Capacitance Change Rate		Within ± 20% of the initial value
	tan δ		≤ 150% of the initial standard value
	Leakage current		≤ the initial standard value
High Temperature No-Load CharacteristiCS	After being stored at 105℃ under no-load conditions for 1000 hours, and subject to voltage treatment in accordance with JIS C5101-44.1 at 20℃, the following requirements shall be met.
	apacitance Change Rate		Within 15% of the initial value
	tan δ		≤150% of the initial standard value
	Leakage current		≤ the initial standard value

Frequency(Hz)		50	60	120	300	1k	10k	50k
Factor	160-100V	0.88	0.90	1.00	1.07	1.15	1.15	1.15
	160-250V	0.81	0.85	1.00	1.17	1.32	1.45	1.50
	315-450V	0.77	0.82	1.00	1.16	1.30	1.41	1.43

Industrial Applications of High-Ripple Capacitors

These capacitors are suitable for various industrial applications including:

Switching power supplies
Industrial UPS systems
Frequency converters
Stepping servo controllers
AC servo systems for sewing equipment
Health equipment controllers
Motor drives
Power inverters

Why Choose UUcap for Your Capacitor Procurement

Established in 2001, Suzhou Youyou Capacitor Manufacturing Co., Ltd. specializes in aluminum electrolytic capacitor production. Our company holds 2 patented technologies and 8 production control software copyrights, with mass-produced 600V working voltage products leading domestic capabilities. We operate multiple production facilities with high-precision automatic equipment, ensuring consistent product quality.

Our capacitors are used by leading enterprises across various industries. In health equipment controllers, our products hold over 70% market share and are designated suppliers for brands including Icon (USA), Shuhua, and Oma. We also supply components to companies such as A.O. Smith and Technology Development Company of Tsinghua University.

Core Technologies

The company possesses 2 patented technologies and 8 copyrights for production control software. The products with a working voltage of 600V that are mass-produced are domestically leading.

Product Standards

The products meet the EU standards and have passed the CE and CB testing certifications.

History of Development

In 2001, the enterprise was established in Beijing.
In 2007, the Suzhou branch was established, and in the same year, the production plant was relocated to Suzhou.
In 2011, the construction of the Anhui factory was initiated.
By the end of 2012, the Anhui factory was officially put into production.
In May 2013, the core production equipment was updated, with a cumulative investment of RMB 15 million in the equipment.

Cooperative Customers

For stepping servo controllers: Shenzhen Leadshine, Beijing HollySys, Start and others.
For AC servo systems of sewing equipment: Baumax, Supu, Hengqiang, Wolong.
In the field of health equipment controllers, UUcap capacitors account for more than 70% of the market share. The company is the designated supplier for brands such as Icon (USA), Shuhua, and Oma.
Customers in industries such as industrial UPS, switching power supplies, and frequency converters.
A.O. Smith, Technology Development Company of Tsinghua University.

FAQ

What is the operating temperature range of these capacitors?

For voltage ratings from 16V to 250V, the operating temperature range is -40°C to +105°C. For voltage ratings from 315V to 450V, the range is -25°C to +105°C.

What is the expected lifespan under rated conditions?

When operated at 105°C with rated voltage and standard ripple current, the capacitors have an endurance rating of 3000 hours.

Do these capacitors comply with international safety standards?

Yes, our high-ripple electrolytic capacitors comply with RoHS directives and have obtained CE and CB certifications, meeting EU safety and environmental requirements.

For detailed specifications on specific voltage and capacitance combinations, or to discuss custom requirements for your commercial operations, please contact our technical support team. We provide comprehensive documentation and sample support to assist with your product development and procurement processes.
