A DC-link film capacitor is installed between the input and output stages of a power converter. Its primary role is to stabilize the DC bus, smooth voltage fluctuations, store short-duration energy and absorb ripple generated by switching devices.
Modern converters use power semiconductors that switch at high speed. These switching events create current pulses and voltage disturbances on the DC link. A properly selected DC bus capacitor helps keep this voltage within the required range and provides a low-impedance path for ripple current.

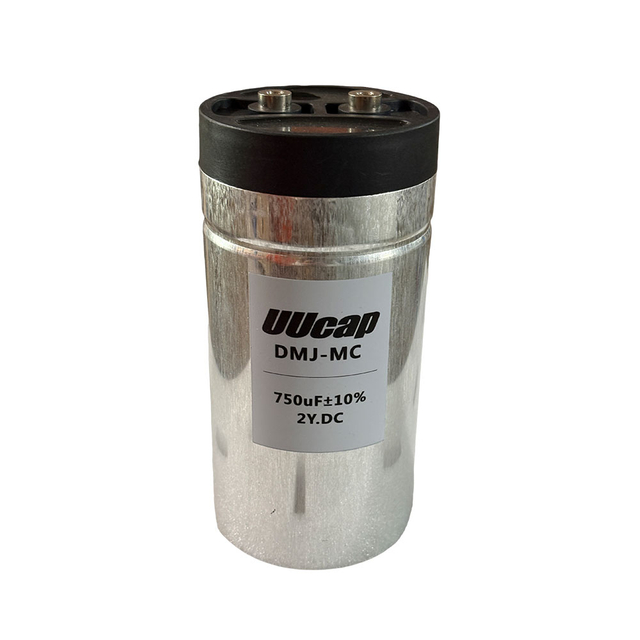

UUcap supplies high-voltage DC-link film capacitors for industrial converters, frequency converters, inverters, servo systems, industrial UPS equipment and switching power supplies. The category currently includes the DMJ-MC series for high-voltage converter applications.
Film capacitor technology is frequently selected where low loss, high ripple current, stable capacitance and repeated pulse performance are important.
A power film capacitor typically uses a thin polymer dielectric with metallized electrodes. This construction provides low dielectric loss and can support fast charging and discharging.
Compared with many electrolytic capacitor designs, a DC-link film capacitor may provide lower ESR, lower equivalent series inductance and more stable capacitance over time. It can also offer strong ripple current capability and self-healing behavior.
Self-healing means that a localized dielectric defect can isolate itself through controlled evaporation of a very small area of metallization. This can allow the capacitor to continue operating instead of immediately developing a complete short circuit.
Film capacitors and aluminum electrolytic capacitors are not always direct substitutes. Electrolytic capacitors generally offer high capacitance density, while film capacitors offer benefits in low-loss, high-frequency and pulse applications. Many systems use one technology or a combination depending on electrical and space requirements.
The DC link separates two power conversion stages. In an AC drive, for example, the input rectifier converts AC power into DC, and the inverter converts this DC into controlled AC output for the motor.
The power flowing into and out of the DC bus is not perfectly constant. A DC-link capacitor absorbs energy when input exceeds output demand and releases energy when output demand temporarily exceeds input. This buffering helps maintain a stable bus voltage.
Voltage stabilization protects the inverter stage from excessive fluctuation and helps the control system operate predictably. In renewable energy converters and bidirectional power systems, the capacitor may also manage rapid changes in power flow.
The required capacitance depends on allowable voltage ripple, switching frequency, power level and transient response. Higher capacitance is not automatically better because size, cost, inrush current and stored energy must also be considered.
Ripple current creates internal heating according to the capacitor’s losses. A low-ESR DC-link capacitor can therefore carry significant ripple current while limiting temperature rise.
Film capacitors are commonly used in inverter and converter circuits where ripple contains higher-frequency components generated by semiconductor switching. Low inductance is also important because parasitic inductance can produce voltage overshoot during rapid current changes.
Engineers should evaluate:
RMS ripple current
Switching frequency and harmonic content
ESR across the operating frequency range
Equivalent series inductance
Ambient temperature
Cooling and airflow
Applied DC voltage
Transient or surge voltage
Expected service life
The capacitor’s permitted ripple current is usually affected by temperature and mounting conditions. A value measured under ideal laboratory cooling may not represent performance inside a compact cabinet.
Frequency converters use a DC bus between the rectifier and inverter sections. A DC-link film capacitor helps smooth bus voltage and supplies short-term energy during motor load changes.
Renewable energy systems experience changing input power. Film capacitors can support rapid power fluctuations and high-frequency switching in solar inverters, battery converters and energy storage systems.
Servo drives require fast, accurate response during acceleration and deceleration. A stable DC bus helps the inverter deliver controlled current to the motor.
A UPS uses power conversion stages to maintain regulated output. DC-link capacitors can help stabilize the intermediate bus and absorb switching ripple.
Charging equipment uses rectifiers, power factor correction stages and DC/DC converters. DC-link film capacitors may be used where high ripple capability, low losses and compact busbar integration are required.
Power supplies for welding and industrial processing often operate with rapid current transitions. Film capacitors can support pulse and switching requirements within their specified limits.
The electrical performance of a film capacitor depends partly on how it is connected. Long wires and narrow conductive paths add inductance, which can reduce the benefit of a low-inductance component.
DC-link film capacitors are often installed close to the inverter semiconductor module using laminated busbars or short, wide copper connections. This arrangement reduces the current loop and helps limit voltage overshoot.
The equipment designer should verify terminal spacing, mounting points, creepage distance, clearance distance and enclosure dimensions. High-voltage insulation requirements must be considered in relation to pollution degree, altitude and applicable safety standards.
Mechanical stress on capacitor terminals should be minimized. Busbars must align correctly without forcing the terminals into position. Vibration and thermal expansion should also be considered in mobile equipment and industrial machinery.
Rated DC voltage is the first parameter. It must exceed the maximum continuous bus voltage with suitable allowance for line variation and control tolerance.
Transient voltage must be evaluated separately. Switching overshoot, regenerative motor energy and abnormal grid conditions can temporarily raise the bus voltage. The selected capacitor must tolerate these events within the permitted limits.
Capacitance should be calculated according to energy buffering and voltage ripple. Ripple current must be evaluated from the actual converter waveform rather than estimated only from rated power.
Other selection factors include:
Capacitance tolerance
ESR and dissipation factor
Permissible RMS current
Peak current capability
Self-inductance
Operating temperature
Expected lifetime
Case dimensions
Terminal arrangement
Fire-retardant and insulation requirements
Compliance standards
For replacement projects, buyers should provide the original capacitor specification and dimensional drawing. Matching only capacitance and voltage is not sufficient.
Both technologies can be used on a DC bus, but they solve different design priorities.
An aluminum electrolytic capacitor provides high capacitance in a relatively compact volume and is widely used where bulk energy storage is the primary requirement. A DC-link film capacitor usually offers lower losses, stronger high-frequency current performance and more stable capacitance.
Film capacitors can be advantageous when:
Ripple current is high
Switching frequency is elevated
Long operational life is required
Low ESR and low inductance are priorities
Repetitive pulses occur
Capacitance stability is important
Electrolytic capacitors may remain preferable where extremely high capacitance density and space efficiency are required. Some converter designs combine both technologies to balance bulk storage and high-frequency filtering.
Converter manufacturers may require a DC-link capacitor with specific capacitance, voltage, terminal spacing, enclosure dimensions or mounting geometry.
UUcap can review customized capacitor requirements for industrial power systems. A useful technical inquiry should include the nominal and maximum bus voltage, required capacitance, RMS ripple current, switching frequency, ambient temperature, cooling method, available space and expected service life.
For busbar-mounted products, a mechanical drawing or 3D installation layout can help verify terminal position and clearance. Sample testing should include electrical load, full thermal conditions and switching transients.
Custom development can help equipment manufacturers reduce busbar complexity, improve space utilization and match the capacitor more closely to the converter architecture.
UUcap uses controlled manufacturing and testing processes for its industrial capacitor products. The current DC-link category includes a high-voltage film capacitor developed for converter systems.
The public product information identifies the DMJ-MC series and describes applications including converters, industrial UPS systems, switching power supplies, frequency converters and servo controllers. Available company information also references EU-related standards and CE and CB testing for relevant products.
Buyers should request the series-specific datasheet, test report, dimensional drawing and compliance documentation required for their target market. Production samples should be validated under the customer’s actual electrical and thermal conditions.
UUcap DC-link film capacitors are designed for voltage smoothing, energy buffering and ripple current handling in industrial power conversion systems.
Provide your bus voltage, capacitance, ripple current, switching frequency, dimensions, terminal layout, temperature range and target application. Contact UUcap for technical evaluation, samples and a quotation for DC-link film capacitors used in converters, inverters, drives and industrial power equipment.
