An individual capacitor may meet an electrical specification, but industrial equipment often requires several capacitors to work together. Connecting, mounting and protecting these components can add engineering time and assembly complexity.

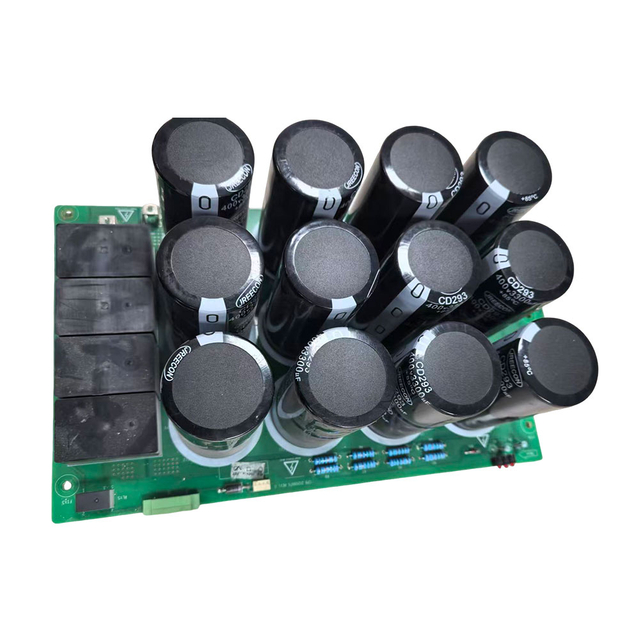

A capacitor module combines multiple capacitors with conductive connections, mechanical supports and, when required, an enclosure. A capacitor box provides a protected assembly that can be integrated into a UPS cabinet, converter, drive or industrial power system.
UUcap provides capacitor modules and box assemblies for industrial customers seeking a more integrated solution. Instead of separately sourcing capacitors, busbars, brackets, cables and protective housing, equipment manufacturers can discuss a module designed around their required voltage, capacitance, current, dimensions and installation interface.
Integrated capacitor modules can simplify installation, improve repeatability and reduce the number of assembly steps required on the customer’s production line.
Capacitors can be connected in parallel, series or a combination of both.
A parallel connection increases total capacitance and distributes current among multiple components. The voltage rating remains equal to the rating of one capacitor, assuming all components have the same rating.
A series connection increases the total voltage capability, but the effective capacitance decreases. Voltage-sharing components may be needed because differences in leakage current can cause unequal voltage distribution.
Series-parallel configurations are used when the system requires both high voltage and high capacitance. Designing these assemblies requires careful consideration of component tolerance, current sharing, voltage balance and thermal distribution.
UUcap can discuss the internal arrangement according to the customer’s DC bus voltage, stored-energy requirement and ripple current. The goal is to achieve the required electrical performance while maintaining practical dimensions and reliable connections.
A capacitor bank is an assembly of capacitors connected to provide a target capacitance, voltage or energy level. In industrial power electronics, these banks are used for DC bus smoothing, energy storage and ripple current handling.
Typical applications include:
Industrial UPS systems
Frequency converters
Motor drives and servo drives
Switching power supplies
Welding equipment
Renewable energy converters
Energy storage systems
Power quality equipment
Industrial automation cabinets
Test and laboratory power systems
In a UPS, the module can stabilize the DC link between the rectifier, battery and inverter. In a drive, it buffers energy between the supply and motor. In a converter, it helps manage switching ripple and load changes.
The capacitor technology inside the module may include aluminum electrolytic capacitors, film capacitors or another technology selected according to the application.
Building a capacitor bank internally requires component purchasing, incoming inspection, busbar fabrication, insulation, assembly and final electrical testing. Each additional process increases production time and introduces another potential source of variation.
An integrated capacitor module can arrive as a prepared subassembly. The equipment manufacturer installs the module, connects the defined interfaces and completes system-level testing.
Potential benefits include:
Fewer purchased part numbers
Reduced internal wiring
Shorter assembly time
More consistent capacitor spacing
Standardized terminal positions
Easier replacement and maintenance
Improved production repeatability
Reduced design work for brackets and enclosures
The actual benefit depends on the module’s level of integration. Some customers need only a mounted capacitor bank, while others require a complete capacitor box with cables, connectors, protection and external terminals.
Electrical connection design has a direct effect on module performance. Busbars or cables must carry the required ripple and discharge current without excessive resistance or temperature rise.
For high-frequency converters, connection inductance is also important. Short, wide busbars and compact current loops can reduce voltage overshoot and improve switching performance.
When several capacitors operate in parallel, the connection geometry should promote balanced current distribution. Symmetrical busbars can help prevent one capacitor from carrying a disproportionate share of ripple current.
Contact surfaces, bolt torque, plating and insulation must be selected for the intended current and environment. Where flexible cables are used, conductor size, terminal crimping and bending radius should be verified.
UUcap can evaluate connection requirements as part of a customized capacitor assembly. The customer should provide current, frequency, voltage and installation information so that the electrical interface can be assessed correctly.
A capacitor box protects internal components from contact, contamination and mechanical damage. The enclosure may also simplify mounting and provide a standardized interface to the customer’s equipment.
Mechanical design factors include:
Overall length, width and height
Mounting hole location
Cable entry direction
Connector or terminal position
Ventilation requirements
Required creepage and clearance
Vibration and shock conditions
Protection against dust or moisture
Maintenance access
Weight and lifting considerations
Large electrolytic capacitors require clearance around their pressure relief features. The enclosure must not block safe vent operation. Heat generated by ripple current must also be removed through ventilation, conduction or forced cooling.
For mobile or vibration-sensitive equipment, internal clamps and supports should prevent capacitor movement without applying damaging stress to the terminals.
Temperature is a major factor in capacitor life. The module designer must account for ambient temperature, internal losses and heat from neighboring equipment.
A capacitor box installed near an inverter or transformer may experience a higher temperature than the surrounding room. Restricted airflow can create internal hot spots, particularly around central capacitors or busbar connections.
Thermal evaluation should consider:
Individual capacitor ripple current
ESR-related power loss
Busbar and connection resistance
Enclosure ventilation
Fan airflow where applicable
Heat from adjacent components
Maximum room or cabinet temperature
Equipment duty cycle
Temperature measurement during prototype testing is strongly recommended. Sensors should be placed near the hottest expected locations rather than only at the enclosure air inlet.
UUcap’s current module information includes industrial capacitor assemblies intended for operating temperatures up to 85°C, subject to the specific series and test conditions.
The correct capacitor technology depends on the module’s function.
Aluminum electrolytic capacitors provide high capacitance density and are suitable for bulk energy storage and low-frequency DC bus smoothing. Film capacitors offer low losses, strong high-frequency performance and stable capacitance. Super capacitors provide rapid charge-discharge capability and high cycle life for short-duration energy storage.
Some assemblies may combine technologies. For example, electrolytic capacitors can provide bulk capacitance while film capacitors handle higher-frequency ripple close to the switching stage.
Selection should be based on:
DC bus voltage
Required capacitance or stored energy
Ripple current spectrum
Peak discharge current
Switching frequency
Operating temperature
Required lifetime
Available volume
Maintenance strategy
Project cost targets
UUcap can recommend an internal capacitor arrangement after reviewing these conditions.
Standard modules are useful when the system requirements match an existing platform. Custom assemblies are appropriate when the customer has fixed cabinet dimensions, special terminals or a specific mounting interface.
A complete customization inquiry should include:
Nominal and maximum voltage
Required total capacitance
RMS ripple current
Peak or pulse current
Operating frequency
Ambient temperature
Available installation space
Mounting drawing
Connection method
Required enclosure protection
Annual purchasing quantity
Compliance requirements
The customer may also provide an existing module drawing or failed component for replacement evaluation.
UUcap can discuss capacitance, voltage, size and module configuration according to OEM project requirements. Prototype verification should be completed before mass production.
A capacitor module can retain hazardous voltage after the equipment is disconnected. The system must include a safe discharge method.
Depending on the application, the module may require discharge resistors, fuses, overtemperature devices, pressure management, contactors or external control interfaces.
External terminals should be clearly marked for polarity and voltage. Covers or barriers may be required to prevent accidental contact. Maintenance instructions should specify the required waiting time and voltage measurement procedure before service.
The module enclosure must not be treated as the only safety measure. Protection should be coordinated with the complete power system.
An integrated capacitor module should be tested as an assembly, not only as a collection of individually approved components.
Relevant checks may include:
Total capacitance
Insulation resistance
Leakage current
Withstand voltage
Terminal torque
Connection resistance
Polarity verification
Dimensional inspection
Functional discharge testing
Thermal testing
Visual and packaging inspection
UUcap uses automated capacitor production and control systems to support repeatable output. The existing module category includes JREECO CD293 and LRECO 2-related industrial capacitor module solutions, with published information referencing operation up to 85°C and mass-produced capacitor voltages up to 600V.
Specific test reports and compliance documents should be confirmed for each final configuration.
An integrated solution can reduce the engineering and manufacturing effort required to install a multi-capacitor bank. UUcap combines capacitor manufacturing experience with customization support for capacitance, voltage, dimensions and application requirements.
Our capacitor modules and boxes can be developed for industrial UPS equipment, switching power supplies, frequency converters, servo systems and other power electronics.
By providing the complete electrical and mechanical requirement at the beginning of the project, customers can receive a more accurate recommendation and avoid repeated modifications during installation.
Send UUcap your system voltage, total capacitance, ripple current, peak current, operating temperature, available dimensions, terminal arrangement and application.
Our team can evaluate a standard or customized capacitor module, prepare technical information and support prototype verification. Contact UUcap for capacitor bank assemblies and capacitor boxes designed for reliable integration into industrial power systems.
