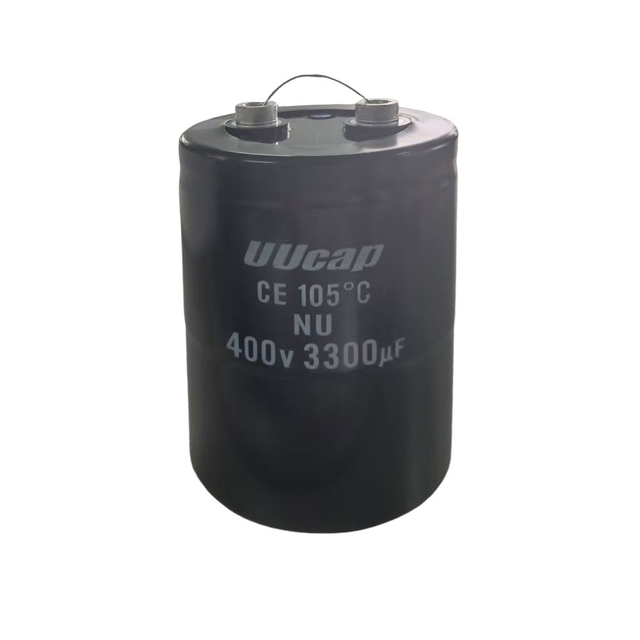

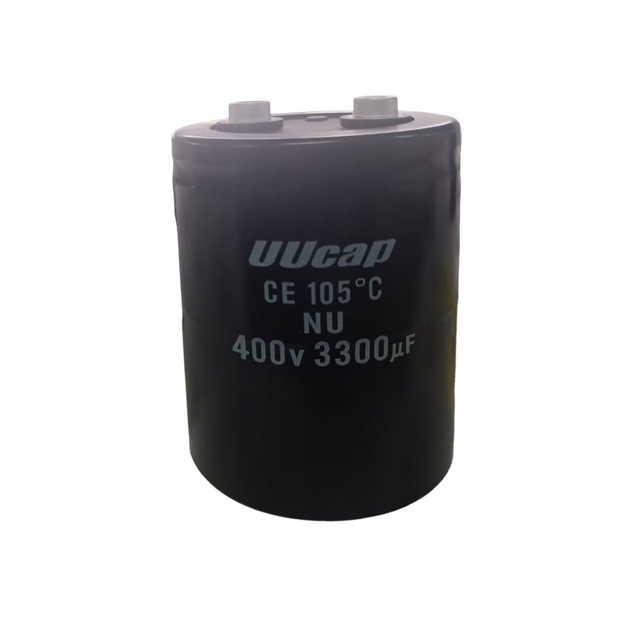

A screw terminal electrolytic capacitor is designed for applications that require high capacitance, substantial ripple current capability and a mechanically secure high-current connection. Instead of being soldered directly to a PCB through small leads, the capacitor uses threaded terminals that connect to cables, busbars or conductive plates.
This construction makes screw terminal capacitors suitable for large industrial UPS systems, high-power converters, motor drives, welding equipment, renewable energy systems and other installations where current levels exceed the practical limits of smaller PCB-mounted components.
UUcap supplies screw terminal aluminum electrolytic capacitors for demanding power applications. Available products include high-voltage designs for industrial UPS systems, with published options covering high capacitance values and extended temperature operation.
For equipment manufacturers, the main selection objective is not simply finding a large capacitor. Voltage, capacitance, ripple current, temperature, terminal configuration, mounting, expected life and protection design must work together as one system.
The threaded terminal arrangement provides a strong electrical and mechanical interface. Cables or busbars can be attached using bolts, washers and specified tightening torque. This creates a lower-resistance current path than small PCB leads and allows the capacitor to be integrated into high-current DC bus assemblies.
Correct installation remains critical. Loose hardware can increase contact resistance, generate localized heating and reduce system reliability. Excessive torque can damage the terminal structure. Installers should follow the recommended torque, washer arrangement and polarity markings supplied for the relevant product.
Busbar geometry also affects performance. Short, wide conductive paths can reduce parasitic resistance and inductance. In fast-switching power systems, minimizing loop inductance can be as important as selecting the nominal capacitance.
When several screw terminal capacitors are connected in parallel, the mechanical arrangement should promote balanced current sharing. Unequal busbar lengths or asymmetric connections may cause some capacitors to carry more ripple current than others.
UUcap screw terminal capacitor information includes products in the 350V to 700V range and capacitance options extending into several thousand microfarads. This combination is suitable for DC buses that must store significant energy while operating at elevated voltage.
Stored energy increases with capacitance and with the square of voltage. High-voltage capacitor banks can therefore retain dangerous energy after equipment has been switched off. Designers must include appropriate discharge resistors, warning labels, interlocks and service procedures.
Capacitance selection should be based on allowable bus ripple, transient load demand, hold-up time and system response. Simply maximizing capacitance may increase inrush current, charging time, physical size and cost.
Voltage margin must account for line variation, regenerative energy, switching transients and abnormal operating states. Series-connected capacitors may be used when bus voltage exceeds the rating of one component, but voltage-sharing resistors and capacitor tolerance must then be considered.
Large industrial converters place continuous AC current stress on their DC bus capacitors. This ripple current creates internal losses and heat. The permissible ripple rating is therefore a central parameter when selecting a screw capacitor.
UUcap screw terminal products are designed for high-power industrial systems and include high-temperature endurance information. Published product data for the industrial UPS series includes operation up to 105°C and endurance testing under rated voltage and ripple conditions.
Actual life depends heavily on internal temperature. Even when ambient temperature is moderate, high ripple current can raise the capacitor core temperature. Enclosure ventilation, fan reliability, distance from semiconductors and busbar heat transfer all affect the final operating condition.
Engineering evaluation should include:
RMS ripple current
Dominant ripple frequencies
Frequency correction factors
Ambient air temperature
Estimated internal temperature rise
Cooling method
Equipment duty cycle
Required operating life
A capacitor bank should be designed so that expected operating conditions remain below the maximum limits with adequate margin.
Industrial UPS systems are a primary application for screw terminal electrolytic capacitors. These systems must maintain a stable DC bus while converting power between the mains input, battery source and inverter output.
During normal operation, capacitors smooth rectified voltage and absorb switching ripple. During load changes or transfer events, they provide short-duration energy that helps stabilize the inverter stage. High capacitance and strong current handling are particularly important in mission-critical installations such as manufacturing plants, data infrastructure, medical facilities and automated production lines.
The capacitor must tolerate repeated charging, continuous ripple current and elevated internal enclosure temperatures. Long service intervals are also important because replacing large DC bus capacitors can require equipment shutdown and specialized maintenance.
For UPS projects, buyers should provide DC bus voltage, power rating, ripple current spectrum, enclosure temperature, expected backup operation and desired maintenance interval.
Screw terminal capacitors are also used in variable-frequency drives, large servo drives, industrial inverters and power conversion equipment.
In a motor drive, the capacitor bank stabilizes the DC link between the rectifier and inverter. During motor acceleration, it supports high power demand. During deceleration, the system may receive regenerative energy from the motor. The control and braking circuit must prevent this energy from raising the bus voltage beyond the capacitor rating.
Solar inverters, wind power converters and energy storage systems also use high-capacitance DC bus components. These applications may involve wide temperature changes, long daily operating periods and demanding lifetime expectations.
In welding power supplies and industrial pulse equipment, capacitors may experience repetitive high-current cycles. The engineer must distinguish between average ripple current, pulse current and discharge energy when evaluating suitability.
Large electrolytic capacitors require secure mounting. Depending on diameter and length, brackets, clamps or base fixtures may be used to prevent movement. Mechanical support is particularly important in equipment exposed to vibration or transportation shock.
Adequate space must be maintained around the pressure relief vent. The vent should not be blocked by a busbar, enclosure wall or mounting structure. Installation orientation must follow the applicable product recommendations.
Polarity must be checked carefully. Reverse voltage can damage an aluminum electrolytic capacitor and create a safety hazard. Where the external sleeve does not provide the primary polarity indication, installers must rely on the terminal markings.
The system should also include:
Controlled charging or pre-charge circuitry
Discharge resistors
Overvoltage protection
Overtemperature monitoring where required
Fusing or fault-current protection
Safe service access
Clear polarity and stored-energy warnings
These measures are essential because a high-voltage screw terminal capacitor can store substantial energy.
A complete specification should include rated voltage, required capacitance, permissible ripple current, expected frequency range and operating temperature.
Mechanical requirements include case diameter, case length, terminal size, terminal spacing, mounting method and available busbar geometry. Replacement capacitors must match the equipment physically and electrically.
Useful selection questions include:
What is the highest continuous DC bus voltage?
Are regenerative or switching overvoltage events possible?
What RMS ripple current will the capacitor carry?
What is the expected enclosure temperature?
How long must the capacitor operate before planned maintenance?
Will multiple capacitors be connected in parallel or series?
What terminal hardware and mounting brackets are required?
Which environmental and compliance standards apply?
Capacitance tolerance, leakage current, dissipation factor and low-temperature characteristics should also be reviewed.
Industrial projects may require a capacitor that fits an existing cabinet, busbar assembly or legacy power platform. UUcap can evaluate customized requirements involving voltage, capacitance, dimensions, terminal configuration and operating conditions.
For an effective evaluation, customers should provide an existing datasheet or nameplate, circuit voltage, actual ripple current, temperature, mounting drawing and estimated purchasing volume.
Engineering samples can then be tested in the equipment before production release. Testing should include startup, full load, thermal equilibrium, power cycling and abnormal voltage conditions where appropriate.
For capacitor banks, UUcap can also discuss component matching and integration requirements with the customer’s engineering team.
UUcap’s screw terminal products are manufactured for industrial applications requiring repeatable electrical performance. Relevant testing includes capacitance, leakage current, dissipation factor, high-temperature storage and endurance under rated operating conditions.
The published industrial UPS series information includes a temperature range up to 105°C, rated voltage options up to 700V and capacitance values up to 15000μF. Selected products are described as RoHS compliant and supported by CE and CB testing information.
Commercial buyers should request the exact series datasheet, dimensional drawing and compliance records before approval. Endurance values should always be interpreted together with their test temperature, applied voltage and ripple conditions.
UUcap screw terminal electrolytic capacitors provide high-capacitance energy storage, secure high-current connections and industrial-grade performance for UPS systems, converters, drives and power equipment.
Send us your voltage, capacitance, ripple current, dimensions, terminal details, temperature range, application and order quantity. UUcap can provide product recommendations, technical documents, samples and quotations for high-power screw terminal capacitor requirements.
