A lithium-ion super capacitor combines characteristics associated with rechargeable energy storage and high-power capacitors. It is designed to charge and discharge rapidly, deliver high power and withstand significantly more operating cycles than many conventional battery technologies.

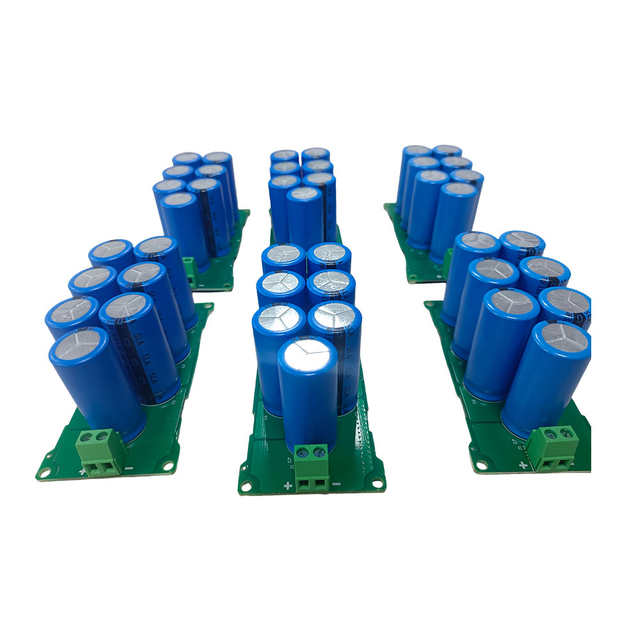

When individual cells are connected with the necessary mechanical, electrical and protective components, they form a super capacitor module. A module provides a more practical unit for integration into an industrial UPS, backup power system, power quality device or energy recovery platform.
UUcap supplies lithium-ion super capacitor modules for industrial energy storage applications. The current product category includes a long-cycle, high-energy module developed for UPS systems.
This technology is particularly useful when the application requires immediate power, frequent charge-discharge operation and short- to medium-duration energy support rather than many hours of battery backup.
Energy describes how much work an energy storage system can provide over time. Power describes how quickly that energy can be delivered.
A conventional battery is often selected for relatively long-duration energy supply. A super capacitor is usually selected for rapid power delivery and frequent cycling. Lithium-ion capacitor technology aims to improve energy density while retaining much of the power and cycle-life performance expected from super capacitor systems.
This makes a lithium-ion super capacitor suitable for applications involving:
Short power interruptions
Voltage sag compensation
High-current startup support
Frequent regenerative energy capture
Repetitive power pulses
UPS ride-through during generator startup
Controlled equipment shutdown
The correct technology depends on backup duration, peak power, cycle frequency, available space and lifetime cost.
Many industrial systems experience power fluctuations every day. A storage device used for repeated voltage support may undergo thousands of partial or full charge-discharge cycles.
Cycle life is therefore a major advantage of a super capacitor module. UUcap’s current lithium-ion module information describes a design intended for long-cycle industrial use, including UPS applications where frequent operation may occur.
Long cycle life can reduce the frequency of energy storage replacement and lower maintenance requirements. However, actual life still depends on voltage, temperature, depth of discharge, charge rate and control strategy.
Operating continuously at the maximum permitted voltage or temperature can place greater stress on the cells. The control system should keep cell voltage balanced and prevent overvoltage, overtemperature and excessive discharge.
A lithium-ion super capacitor module can accept and release energy faster than many battery systems. This makes it suitable for supporting equipment during sudden load changes or short grid disturbances.
In a UPS system, the module can provide immediate power while another source starts or while the system completes an orderly shutdown. In industrial machinery, it may support a motor during acceleration or capture regenerative energy during braking.
High power capability also reduces the need to oversize energy capacity solely to meet a short peak-current requirement. The module can be selected according to both energy and power rather than only its nominal capacity.
Engineers should verify peak current, continuous current, internal resistance and thermal behavior. Cable size, connectors, contactors and protection devices must also be rated for the possible current.
Industrial UPS equipment must respond immediately when the incoming power fails or falls outside acceptable limits. A super capacitor module can provide this immediate energy without waiting for a mechanical generator to start.
Potential configurations include:
The module supports the load for seconds or minutes, depending on system power and energy capacity. This can be sufficient for brief interruptions or controlled shutdown.
The super capacitor supplies power during the interval between grid failure and generator stabilization.
The module helps maintain the DC bus during short reductions in input voltage.
Applications with frequent power events can benefit from energy storage designed for repeated cycling.
A super capacitor can handle high-power transients while the battery provides longer-duration energy. This may reduce peak stress on the battery.
The best architecture depends on the load profile and required autonomy time.
Lithium-ion super capacitor modules can also support regenerative drives, automated guided vehicles, industrial robots, cranes, elevators, communication equipment and renewable energy systems.
In a regenerative drive, braking energy can be captured instead of dissipated entirely as heat. In automated equipment, the module can support acceleration peaks and reduce sudden demand on the main supply. In communication systems, it may provide short backup during switching between power sources.
Outdoor or remote equipment may require a broad operating temperature range, sealed enclosure and environmental protection. Mobile systems must also consider vibration, shock, weight and mounting orientation.
Because each application produces a different current and voltage profile, module selection should be based on measured or calculated operating data.
A super capacitor module is specified by rated voltage, capacitance or stored energy, internal resistance and current capability. The voltage must match the UPS or converter architecture.
The UUcap product page currently presents a 48V module configuration for UPS-oriented applications. Custom projects may require different voltage, capacity, dimensions or enclosure arrangements.
The module must be integrated with suitable monitoring and protection. Depending on the design, this may include:
Cell voltage balancing
Overvoltage protection
Undervoltage protection
Overcurrent protection
Temperature monitoring
Short-circuit protection
Pre-charge control
Contactors or isolation devices
Communication with the UPS controller
A module should not be treated as a passive replacement for every battery pack. Charging algorithms, voltage windows and protection logic may need to be adjusted.
Internal resistance causes heat when current flows. High charge or discharge current can therefore raise module temperature.
The installation should provide sufficient airflow or conduction cooling to keep the cells within the permitted operating range. Heat generated by nearby inverters, chargers and power semiconductors must also be considered.
For outdoor or industrial environments, enclosure protection against dust and moisture may be required. The existing UUcap module information includes a protected module configuration designed for industrial operation.
Temperature affects both performance and lifetime. Low temperature can influence power capability, while sustained high temperature can accelerate aging. The actual site temperature should be used when calculating performance.
Sizing begins with the load power and required support time. Required energy can be estimated from power multiplied by time, with allowance for converter efficiency, voltage limits and design margin.
The minimum operating voltage must also be defined. Unlike some regulated battery systems, capacitor voltage changes as energy is discharged. The converter or UPS must continue operating throughout the permitted voltage window.
Important inputs include:
Peak and continuous load power
Required backup duration
Nominal and minimum bus voltage
Charge time available
Number of cycles per day
Ambient temperature
Maximum module dimensions
Weight limit
Communication and monitoring requirements
Required service life
For hybrid battery-super capacitor systems, engineers should decide which device handles transient power and which supplies sustained energy.
UUcap can discuss customized lithium-ion super capacitor modules based on voltage, capacity, dimensions and application requirements.
Customers should provide a load profile rather than only a nominal wattage. Information about peak current, event duration, cycle frequency and recharge time allows a more accurate evaluation.
Mechanical drawings are also useful when the module must fit an existing UPS cabinet or equipment enclosure. Connector type, cable exit direction, mounting points and protection level should be confirmed before sample production.
Prototype modules should be tested through repeated charge-discharge cycles under realistic temperature and power conditions. Integration testing should verify control communication, fault handling and emergency shutdown behavior.
Industrial energy storage modules require controlled cell selection, electrical matching, assembly and final testing. Module consistency is important because differences between cells can affect voltage balance and usable capacity.
UUcap’s published super capacitor module information emphasizes long-cycle operation, high energy performance and industrial UPS use. Available product information also includes temperature, protection and module configuration data.
For procurement, buyers should request:
Electrical specification
Charge-discharge limits
Cycle-life test conditions
Mechanical drawing
Protection functions
Environmental rating
Compliance documentation
Warranty terms
Storage and transportation requirements
Cycle-life claims must always be interpreted using the associated voltage, temperature and depth-of-discharge conditions.
UUcap lithium-ion super capacitor modules provide rapid power delivery, long cycle life and repeated energy storage for industrial UPS and power quality systems.
Share your system voltage, load power, required backup time, peak current, cycle frequency, temperature, available dimensions and annual demand. Contact UUcap to request a technical proposal, customized module evaluation, samples or pricing for your industrial energy storage project.
